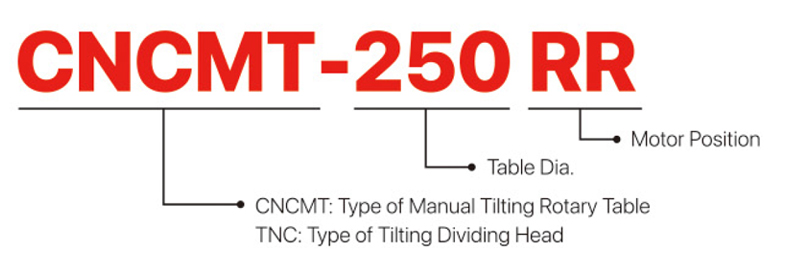

CNCMT-200~630RR
- Features
- Specifications
- Suitable for conventional Milling, Boring and Tapping Machine.
- Suitable to E.D.M. machine, for machining workpieces of wheel-moulding machine of bicycle, motorcycle.
- Manual tilting, Rotating by CNC control.
| ITEM/MODEL | CNCMT-200 | CNCMT-250 | CNCMT-320 | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Table Dia. (mm/inch) | ø200/ø7.87 | ø250/ø9.84 | ø320/ø12.60 | ||||||
| Center Height in Vertical (mm/inch) | 190/7.48 | 210/8.26 | 270/10.62 | ||||||
| Thru-Hole Dia. (mm/inch) | 30H7/1.18H7 | 70H7/2.75H7 | 110H7/4.33H7 | ||||||
| Width of T- slot (mm/inch) | 12H7/0.47H7 | 12H7/0.47H7 | 14H7/0.55H7 | ||||||
| Width of Guide Block (mm/inch) | 18h7/0.71h7 | 18h7/0.71h7 | 18h7/0.71h7 | ||||||
| Servo Motor Type | Rotating | Tilting (Scale) | Rotating | Tilting (Scale) | Rotating | Tilting (Scale) | |||
| FANUC | α4i | Manual | α4i | Manual | α12i | Manual | |||
| Gear Ratio | 1:90 | - | 1:90 | - | 1:180/1:90 | - | |||
| Min. Indexing Unit Degree (degree) | 0.001° | 1° | 0.001° | 1° | 0.001° | 1° | |||
| Max. R.P.M. (rpm) (motor: 2000 rpm) | 22.2 | - | 22.2 | - | 11.1/22.2 | - | |||
| Pneu. Clamp Force (kg•m) (P: 5kg/cm²) | 25 | - | 47 | - | 71 | - | |||
| Hydro. Clamp Force (kg•m) (P: 20kg/cm²) | 50 | - | 94 | - | 142 | - | |||
| Indexing Accuracy Class (sec.) | 20" | - | 15" | - | 15" | - | |||
| Repeatability (sec.) | Unidirectional | 4" | - | 4" | - | 4" | - | ||
| Bidirectional | 8" | - | 8" | - | 8" | - | |||
| Tilting Degree | 0° ~105° | 0°~100° | 0°~100° | ||||||
| N.W. (kgs) | 135 | 220 | 310 | ||||||
| Max. Load | Vertical |
 |
W=40kg | W=125kg | W=150kg | ||||
| Horizontal |
 |
W=80kg | W=300kg | W=350kg | |||||
| Outline Dimensions |  |
|
|
||||||
| ※ GSA remains the right of modification. All specifications can be modified according to customers· requirement. |
| ITEM/MODEL | CNCMT-400 | CNCMT-500 | CNCMT-630 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Table Dia. (mm/inch) | ø400 | ø500 | ø630 | |||||||
| Center Height in Vertical (mm/inch) | 290 | 330 | 440 | |||||||
| Thru-Hole Dia. (mm/inch) | 150H7 | 180H7 | 254H7 | |||||||
| Width of T- slot (mm/inch) | 14H7 | 18H7 | 18H7 | |||||||
| Width of Guide Block (mm/inch) | 18h7 | 18h7 | 18h7 | |||||||
| Servo Motor Type | Rotating | Tilting (Scale) | Rotating | Tilting (Scale) | Rotating | Tilting (Scale) | ||||
| FANUC | α12i | Manual | α12i | Manual | α22i | Manual | ||||
| Gear Ratio | 1:90 | - | 1:120 | - | 1:180 | - | ||||
| Min. Indexing Unit Degree (degree) | 0.001° | 1° | 0.001° | 1° | 0.001° | 1° | ||||
| Max. R.P.M. (rpm) (motor: 2000 rpm) | 22.2 | - | 16.7 | - | 11.1 | - | ||||
| Pneu. Clamp Force (kg•m) (P: 5kg/cm²) | 92 | - | 125 | - | 350 | - | ||||
| Hydro. Clamp Force (kg•m) (P: 20kg/cm²) | 184 | - | 250 | - | 700 | - | ||||
| Indexing Accuracy Class (sec.) | 15" | - | 15" | - | 15" | - | ||||
| Repeatability (sec.) | Unidirectional | 4" | - | 4" | - | 4" | - | |||
| Bidirectional | 8" | - | 8" | - | 8" | - | ||||
| Tilting Degree | 0°~100° | 0°~100° | 0°~100° | |||||||
| N.W. (kgs) | 380 | 450 | 1000 | |||||||
| Max. Load | Vertical | |
W=300kg | W=350kg | W=400kg | |||||
| Horizontal | |
W=500kg | W=600kg | W=800kg | ||||||
| Outline Dimensions | |
|
|
|||||||
| ※ GSA remains the right of modification. All specifications can be modified according to customers· requirement. |
