CLT-63~300

CLT-63~300

Inquiry Back
  • Features
  • Specifications
  • Download

  • Equipped "double-cam-plate" for indexing mechanism, smooth with turbo-speed to turning the tool-disc, with compact design & high durability, suitable for heavy cutting of precision.
  • Driving source per hydraulic to turning tool-disc, indexing and clamping/unclamping, precisely and correctly.
  • Smart selection of nearby tools,controlled via proximity-detector and PLC programming,no error of tool-disc change.

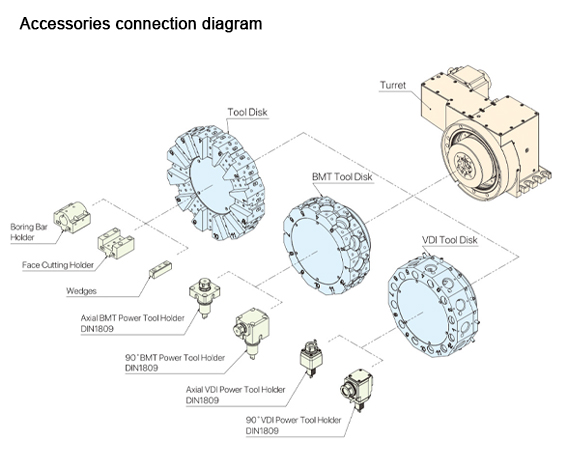

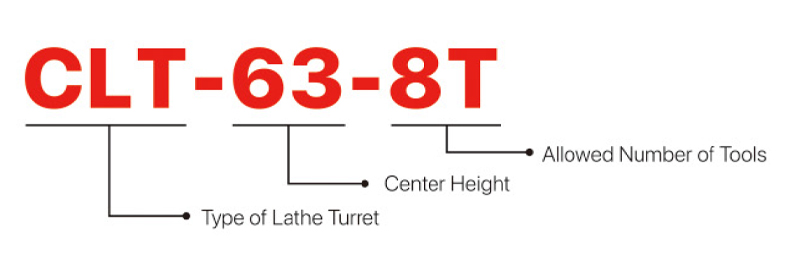

ITEM/MODEL CLT-63 CLT-80 CLT-100 CLT-125B CLT-160A CLT-200 CLT-300
Allowed Number of Tools N 8 12 8 12 8 12 8 12 8 12 8 12 8 12
Center Height mm 63/2.48 80/3.15 100/3.39 125/4.92 160/6.30 200/7.87 300/11.80
Inertia of Movement for Tool-disc kg.m² 1.6 5.5 11 12.8 20 40 40
Rotation and Clamping (theoretical value) Sec. 0.6 0.6 0.8 0.8 1.2 1.5 1.5
Clamping Force kgf 1060 2500 3400 6480 8100 11130 11130
Total Indexing Time for 180° (include clamping) (theoretical value) Sec. 1.4 1.6 1.4 1.6 1.5 1.85 1.5 1.85 3.6 5.2 4.5 6.5 4.5 6.5
Hydraulic Working Pressure kgf/cm² 25~30 33~37 33~37 35~40 33~37 33~37 33~37
Flow Rate L/min 20 30 40 40 40 50 50
Accuracy of Repeatability (theoretical value) Sec. ±1" ±1" ±1" ±1" ±1" ±1" ±1"
F1 x b Nm 2100 3200 6000 9000 17500 24000 24000
F2 x b Nm 2500 3800 10000 12000 29000 40000 40000
F3 x b Nm 1200 1600 4000 6000 14500 20000 20000
Net Weight
(without tool disc)		 kgs 46 62 97 115 200 380 400
Diameter of Coupling & Type mm/inch Ø120
2 pcs		 Ø160
2 pcs		 Ø180
2 pcs		 Ø210
2 pcs		 Ø280
2 pcs		 Ø346
2 pcs		 Ø346
2 pcs
Outline Dimensions
※ GSA remains the right of modification. All specifications can be modified according to customers' requirement.
ITEM/ MODEL CLT-63 CLT-80 CLT-100
CLT-125B		 CLT-160A CLT-200
CLT-300
8N Disc size 228mm Disc size 270mm Disc size 330mm Disc size 385mm Disc size 483mm
12N Disc size 290mm Disc size 340mm Disc size 420mm Disc size 480mm Disc size 600mm
Inside tool Size ⌀20 Size ⌀32 Size ⌀40 Size ⌀40/⌀50 Size ⌀50
Facing holder Size 口 20 Size 口20 / 口25 Size 口25 Size 口25 / 口32 Size 口32
※ GSA remains the right of modification. All specifications can be modified according to customers' requirement.

Electrical System
CLT-63, 80, 100, 125, 200, 300
ITEM ARTICLE SPECIFICATION CABLE CODE SIGNAL
Sensor A Position Sensor 10~30V DC
100 mA (Load)
Output-PNP-NO		 -24V -A -0  Brown 24V
Black Out
Blue 0V
Sensor B Position Sensor 10~30V DC
100 mA (Load)
Output-PNP-NO		  -24V -B -0  Brown 24V
Black Out
Blue 0V
Sensor C Position Sensor 10~30V DC
100 mA (Load)
Output-PNP-NO		  -24V -C -0  Brown 24V
Black Out
Blue 0V
Sensor D Position Sensor 10~30V DC
100 mA (Load）
Output-PNP-NO		  -24V -D -0  Brown 24V
Black Out
Blue 0V
Sensor E Disk Sensor 10~30V DC
100 mA (Load)
Output-PNP-NO		  -24V -E -0  Brown 24V
Black Out
Blue 0V
Sensor F Disk Unclamp Sensor 10~30V DC
100 mA (Load)
Output-PNP-NO		  -24V -F -0  Brown 24V
Black Out
Blue 0V
Sol A Disk Clamp (Unclamp) Solenoid DC24V AC110V
Sol B Disk Rotation Solenoid DC24V AC110V
※ GSA remains the right of modification. All specifications can be modified according to customers' requirement.
Electrical Sequence Diagram
CLT-63, 80, 100, 125, 200, 300
