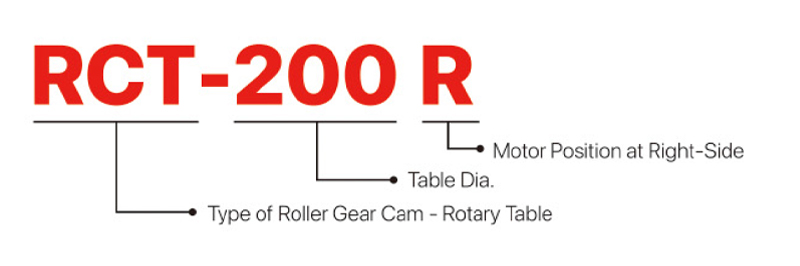

RCT-170R~320R
- Features
- Specifications
- With Zero- Backlash roller drive technology.
- Hith-Speed operation & Lowest indexing cycle time.
- High Rigidity and High Durability.
- Imported from Japan.
| ITEM/MODEL | RCT-170R | RCT-200R | RCT-250R | RCT-320R | |||
|---|---|---|---|---|---|---|---|
| Table Dia. (mm/inch) | 170 /6.69 | 200/7.87 | 250/9.84 | 320/12.60 | |||
| Center Height in Vertical (mm/inch) | 135/5.31 | 160/6.3 | 185/728 | 210/8.27 | |||
| Thru-Hole Dia. (mm/inch) | 35H7/1.38H7 | 35H7/6.3H7 | 70H7/7.28H7 | 80H7/3.15H7 | |||
| Width of T-slot (mm/inch) | 12H7/0.47H7 | 12H7/0.47H7 | 12H7/0.47H7 | 14H7/0.55H7 | |||
| Width of Guide Block (mm/inch) | 18h7/0.71h7 | 18h7/0.71h7 | 18h7/0.71h7 | 18h7/0.71h7 | |||
| Servo Motor Type | FANUC | α4i | α4i | α8i | α8i | ||
| Gear Ratio | 1:30 | 1:40 | 1:40 | 1:60 | |||
| Min. Indexing Unit Degree (degree) | 0.001° | 0.001° | 0.001° | 0.001° | |||
| Max. R.P.M. (rpm) (motor: 2000 rpm) | 66.6 | 50 | 50 | 33.3 | |||
| Pneu. Clamp Force (kg•m) (P: 5kg/cm²) | 25 | 25 | 45 | 71 | |||
| Hydro. Clamp Force (kg,m) (P: 20kg/cm²) | 50 | 50 | 90 | 142 | |||
| Indexing Accuracy Class (sec.) | 20" | 20" | 20" | 20" | |||
| Repeatability (sec.) | 4" | 4" | 4" | 4" | |||
| Max. Machining Force (kg•m) | 25 | 25 | 60 | 80 | |||
| N.W (kgs) | 65 | 80 | 120 | 200 | |||
| Max. Load | Vertical |  |
W=75kg | W=75kg | W=100kg | W=150kg | |
| Horizontal |  |
W=150kg | W=150kg | W=250kg | W=350kg | ||
| Outline Dimensions |  |
|
|
|
|||
| ※ GSA remains the right of modification. All specifications can be modified according to customers' requirement. |
