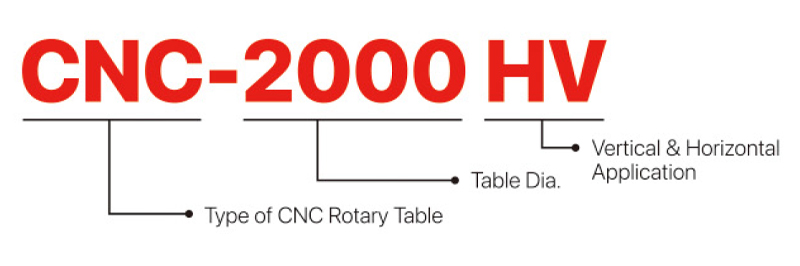

CNC-1000SI~2000HV

CNC-1000SI~2000HV

Inquiry Back
  • Features
  • Specifications
  • Download

  • Table size from size 1,000mm to size 2,000mm can be manufactured in both vertical/horizontal position with high accuracy and high loading capacity which are suitable for heavy machining and metrology applications.
  • All units in Tables are manufactured from high quality materials and workmanship. Every Table has running/accuracy testing for at least 48 performance confidence.
  • Can be designed by customers' drawings Saddle.
  • 0.001 degree increment is standard. Indexing accuracy can be choosed by customers' request. 5 sec. or 10 sec. (Encoder is required.)
ITEM/MODEL CNC-1000SI CNC-1200SI CNC-1500SI CNC-2000HV
Table Dia (mm/inch) 1000/39.35 1200/47.21 1500/5902 2000/78.69
Center Height in Vertical (mm/inch) 650/25.57 810/31.87 900/35.41 1100/43.28
Center Holes (mm/inch) - - - 200x70/787x2.75
Width of T-slot (mm/inch) 20H7/0.79H7 20H7/0.79H7 22H7/0.87H7 28H7/1.10H7
Width of Guide Block (mm/inch) 22h7/0.87h7 22h7/0.79h7 28h7/0.87h7 36h7/1.10h7
Servo Motor Type FANUC α30 i α30 i α30 i α40 i
Gear Ratio 1:360 1:360 1:720 1:720
Min. Indexing Unit Degree (degree) 0.001° 0.001° 0.001° 0.001°
Max. R.P.M. (rpm) (motor: 2000 rpm) 5.55 5.55 2.78 2.78
Hydro. Clamp Force (kg •m) (P: 35kg/cm²) 1440 1440 1600 5500
Indexing Accuracy Class (sec.) (No Encoder) 30" 30" 30" 30"
Repeatability (sec.) (No Encoder) Unidirectional 4" 4" 4" 4"
Bidirectional 8" 8" 8" 8"
Max. Machining Force (kg•m) 500 500 600 700
NW (kgs) 1500 3500 6000 8000
Max. Load Vertical W=1500kg W=2000kg W=3000kg W=4000kg
Horizontal W=3500kg W=5000kg W=8000kg W=10000kg
Outline Dimensions
※ GSA remains the right of modification. All specifications can be modified according to customers' requirement.
