HRT-500S1-2500

HRT-500S1-2500

Inquiry Back
  • Features
  • Specifications
  • Download

  • Suitable for Horizontal Machining Center, floor type boring machine.
    For both indeexing & simulltaneous machhine.
  • Hi-Accuracy, Adapting a special anti-wearing alloy of bronze/nickel double-lead worm wheel and hardened steel worm scrrew ensure long term indexing accuracy.
  • Could be manufactured according to customers' designing and interface of machine Saddle.
  • Hydraulic Clamping, high rigid brake structure for heavy cutting.
  • Table size from size 400mm to 2,500mm or manufactured according to customer's requirement, high loading/accuracy design also available suitable for heavy machining and metrology applications.
  • Random dividing 0.001 degrees, Indexing Accuracy according to custome's requirement 6 sec, 10 sec. or higher indexing accuracy. (encoder is required)

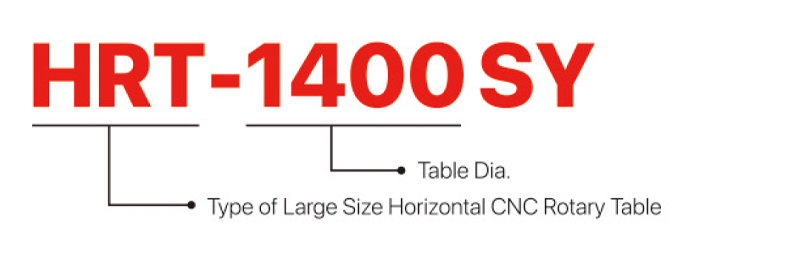

ITEM/MODEL HRT-500S1 HRT-630S1 HRT-800S1 HRT-1000S1
Table Size LxW (mm/inch) 500/ 19.67 630/2479 800/31.48 1000/ 39.35
Width of T-slot (mm/inch) 18H7/0.71H7 18H7/0.71H7 18H7/0.71H7 22H7/0.87H7
Total Height (mm/inch) 305/12.0 315/12.39 340/13.38 380/1495
Servo Motor Type FANUC α12i / α22i  α22i  α22i  α22i / α30i
Gear Ratio 1:90 1:180 1:180 1:180
Max. R.P.M. (rpm) (motor : 2000 rpm) 22.2 11.1 11.1 11.1
Clamping/Unclamping Hydro. 35kg/cm² Hydro. 35kg/cm² Hydro. 35kg/cm² Hydro. 35kg/cm²
Max. Loading Weight (kgs) (evenly distributed) 1000 2000 3000 5000
Indexing Accuracy Class (sec.) 15" 15" 15" 15"
Repeatability (sec.) 4" 4" 4" 4"
Clamping Force (kg) 240 210 280 1020
Clamping Torque (kgf•m) 240 210 280 1020
※ GSA remains the right of modification. All specifications can be modified according to customers' requirement.

ITEM/MODEL HRT-1200 HRT-1400SY HRT-2000 HRT-2500
Table Size LxW (mm/inch) 1200/47.21 1400/55.08 2000/78.69 2500/98.36
Width of T- slot (mm/inch) 22H7/0.87H7 22H7/0.87H7 22H7/0.87H7 28H7/1.10H7
Width of T- slot (mm/inch) 450/17.72 490/19.28 600/23.61 649/25 54
Servo Motor Type FANUC α30i  α30i  α40i  α40i
Gear Ratio 1:360 1:720 1:720 1:1800
Max. R.P.M. (rpm) (motor : 2000 rpm) 5.55 2.78 2.78 1.11
Clamping/Unclamping Hydro. 35kg/cm² Hydro. 35kg/cm² Hydro. 35kg/cm² Hydro. 35kg/cm²
Max. Loading Weight (kgs) (evenly distributed) 5000 10000 20000 30000
Indexing Accuracy Class (sec.) 30" 30" 30" 30"
Repeatability (sec.) 4" 4" 4" 4"
Clamping Force (kg) 1405 1800 2000 6800
Clamping Torque (kgf•m) 1405 1800 2000 6800
Outline Dimensions
※ GSA remains the right of modification. All specifications can be modified according to customers' requirement.
