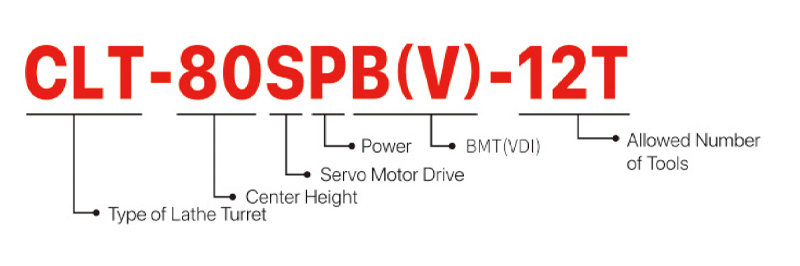

CLT-80SPB~200SPB
- Features
- Specifications
- Download
- Maximum speed of the power tooling can be reached 5,000/6,000 rpm with strong clamping force which is suitable for heavy cutt ing such as milling, drilling and tapping machining.
- Adopting interface coupling of power tool holder with DIN 1809 type.
- Adopting 3 pcs Hirth Coupling & Hydraulic Clamping /U nclamping System suitable for heavy cutting long term operation.
- There is need 0.1 sec. only with speedy rotation time (adjacent), Indexing accuracy: ±2 sec. Accuracy of repeatability: ±1 sec.
- Changing time between in rotating position and power tooling within one second.
- Adopting tool disc model of VDI or BMT type, position accuracy can be reached 0.01mm (without tool holder), concentricity can be reached 0.005mm.
- Spindle Motor can be changed according to di fferent controller model such as SIEMENS and MITSUBISHI.
- Low noise and high durability.
| ITEM/MODEL | CLT-80SPB | CLT-100SPB | CLT-125SPB | CLT-160SPB | CLT-200SPB | ||||
|---|---|---|---|---|---|---|---|---|---|
| Allowed Number of Tools | N | 12 | 12 | 12 | 12 | 12 | |||
| Center Height | mm/inch | 80/3.15 | 100/3.93 | 125/4.92 | 160/6.30 | 200/7.87 | |||
| Tool disc size | mm/inch | 310 12.20 |
350 13.77 |
350 13.77 |
350 13.77 |
380 14.95 |
430 16.92 |
520 20.46 |
520 20.46 |
| Clamping Force | kgf | 2646 | 3840 | 5780 | 8790 | 13900 | |||
| Rotation and Clamping (theoretical value) | Sec. | 0.49 | 0.64 | 0.8 | 0.93 | 1.6 | |||
| Total Indexing Time for 180° (include clamping) (theoretical value) | Sec. | 0.79 | 1.21 | 1.37 | 2 | 4.6 | |||
| Hydraulic Working Pressure | kgf/cm² | 35±3 | 35±3 | 40±3 | 40±3 | 40±3 | |||
| Flow Rate | L/min | 20 | 20 | 20 | 20 | 30 | |||
| Servo Motor Type | MITSUBISHI HG-SR52JK |
MITSUBISHI HG-SR102JK |
MITSUBISHI HG-SR102JK |
MITSUBISHI HG-SR102JK |
MITSUBISHI HG-SR81JK |
||||
| Gear Ratio | 24:1 | 45:1 | 45:1 | 45:1 | 120:1 | ||||
| Motor Stalling Torque | N.m | 2.4 | 4.8 | 4.8 | 4.8 | 8.1 | |||
| Diameter of Coupling & Type | mm | Ø125/Ø4.92 3pcs |
Ø150/Ø5.90 3pcs |
Ø180/Ø7.08 3pcs |
Ø230/Ø9.05 3pcs |
Ø270/Ø10.62 3pcs |
|||
| Spindle motor type | FANUC αiI2-10000 |
FANUC αiI2-10000 |
FANUC αiI2-10000 |
FANUC αiI3-10000 |
FANUC αiI65-10000 |
FANUC αiI15-7000 |
FANUC αiI15-7000 |
||
| Tool holder shaft size | BMT45 | BMT55 | BMT55 | BMT55 | BMT65 | BMT75 | BMT85 | BMT85 | |
| Rotating tool holder coupling | DIN 1809 | DIN 1809 | DIN 1809 | DIN 1809 | DIN 1809 | ||||
| Gear ratio for power tooling | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | ||||
| Tool holder Max.speed | rpm | 5000 | 5000 | 5000 | 4000 | 3500 | 3500 | ||
| ※ GSA remains the right of modificalion. All specifications can be modified according to customers' requiremenl. |
CLT-80SPB-200SPB Specifications-PDF
