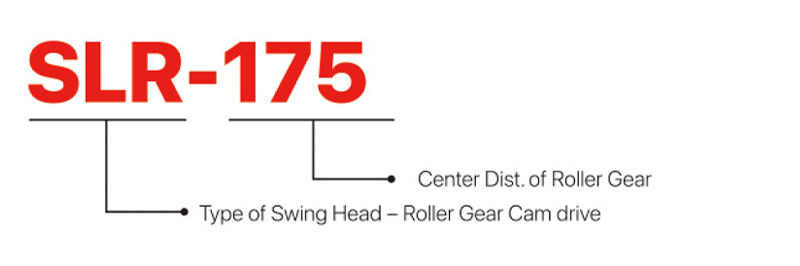

SLR-175

SLR-175 SLR-175

Inquiry Back
  • Features
  • Specifications
  • Download

  • With Zero-Backlash roller drive technology.
  • Hith-Speed operation & Lowest indexing cycle time.
  • High Rigidity and High Durability.
  • Imported from Japan.
ITEM/MODEL SLR-175
Center Holes (mm/inch) 180H7/7.08H7
Thru- Hole Dia. (mm/inch) 100H7/3.93H7
Servo Motor Type FANUC α22i
Gear Ratio 1:90
Min. Indexing Unit Degree (degree) 0.001°
Max. R.P.M. (rpm) (motor : 2000 rpm) 22.2
Hydro. Clamp Force {kg•m) (P: 20kg/cm²) 250
Max. Machining Force (kg•m) 160
Indexing Accuracy Class (sec.) 15"
Repeatability (sec.) Unidirectional 2"
Bidirectional 4"
Tilting Degree ±120°
N.W. (kgs) 300
Outline Dimensions
※ GSA remains the right of modification. All specifications can be modified according to customers' requirement.
