- Suitable for large for large type & vertical CNC lathe.
- Smart selection of nearby tools.
- Build-in 2pcs hirth coupling, repeatability: ±1 sec.
- With coolant holes.
- With compact design & high durabi lity, suitable for heavy cutting.

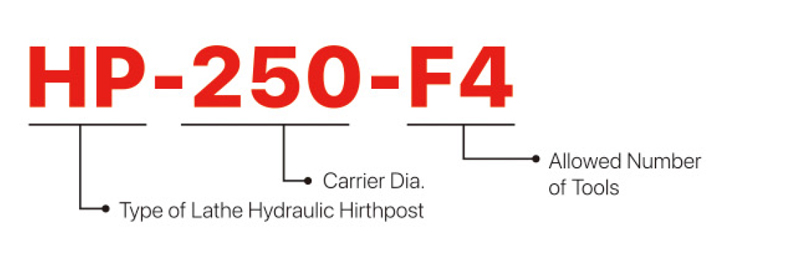

| ITEM/MODEL | HP250-F4 | HP250-F6 | HP350-F4 | HP350-F6 | HP451-S | |
|---|---|---|---|---|---|---|
| Carrier Dia. | mm/inch | 250/9.84 | 250/9.84 | 350/13.77 | 350/13.77 | 450/17.71 |
| Division | 4 Equal Parts | 6 Equal Parts | 4 Equal Parts | 6 Equal Parts | 8 / 6 / 4 Equal Parts | |
| Clamp/Unclamp | 8.5 | 5 | 5.5 | |||
| Rotating Driving Volume | Left or Right | Left or Right | Left or Right | |||
| Hydraulic Driving Volume | C.C | 103 | 276 | - | ||
| Driving Type | Hydraulic Electric | Hydraulic Electric | Servo Driving | |||
| Clamp Force | kgf | 2060 (hydraulic 35kg/cm²) | 3298 (hydraulic 35kg/cm²) | 7300 (hydraulic 35kg/cm²) | ||
| Rotating Torque | kgf•m | 9.8 (hydraulic 35kg/cm²) | 35 (hydraulic 35kg/cm²) | - | ||
| Hirth Coupling Size (2pcs) | mm | 24x210/0.94x8.26 (teeth x dia.) | 24x280/0.94x11.02 (teeth x dia.) | 48x380/1.89x14.95 (teeth x dia.) | ||
| Indexing Accuracy (theoretical value) | Sec. | ±3" | ±3" | ±3" | ||
| Accuracy of Repeatability (theoretical value) | Sec. | ±1" | ±1" | ±1" | ||
| Net Weight | kgs | 90 | 97 | 240 | 300 | 550 |
| Suitable Output of Spindle | kw | 11.0 | 30.0 | 40.0 | ||
| Outline Dimensions |  |
|
|
|
|
|
| ※ GSA remains the right of modificalion. All specifications can be modified according to customers' requiremenl. |

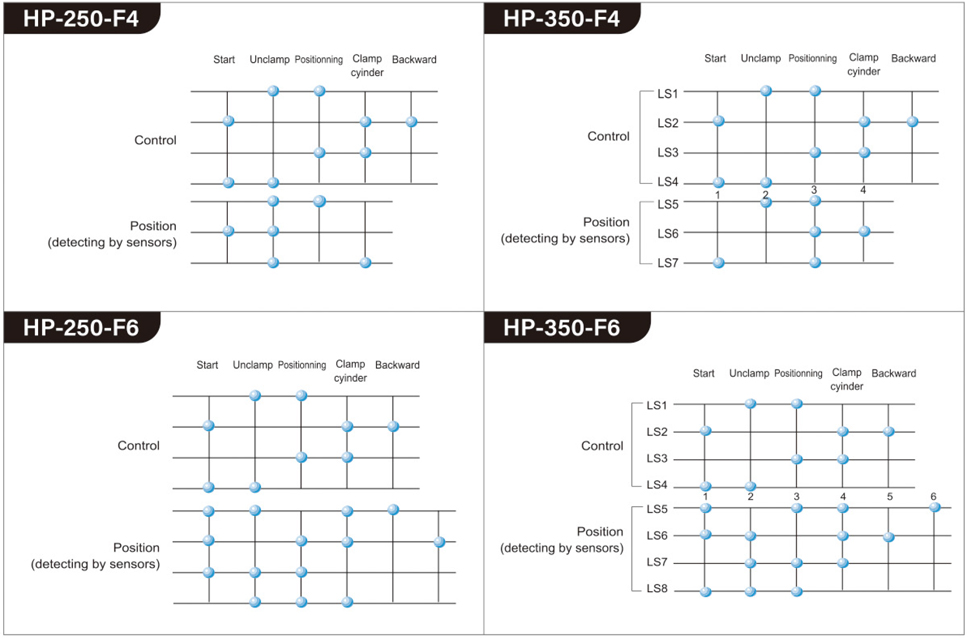

| Electrical sequence chart |
|---|
 |
