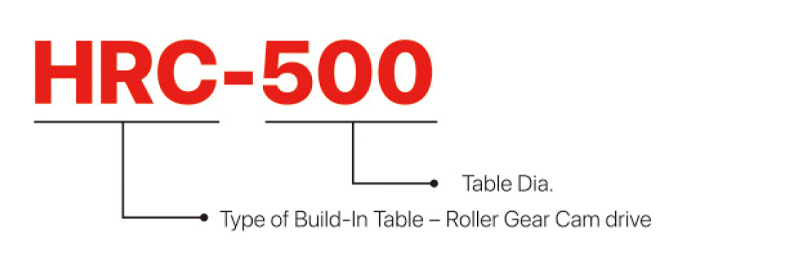

ITEM/MODEL HRC-500
Table Dia. (mm/inch) Ø600/Ø23.61
Center Holes (mm/inch) Ø50H7x10 deep/Ø0.197H7x0.39 deep
Overall Hight (mm/inch) 363
Servo Motor Type FANUC α22i
Gear Ratio 1:150
Max. R.P.M. (rpm) (motor: 2000 rpm) 13.3
Min. Indexing Unit degree (degree) 0.001°
Angle Encoder HEIDENHAIN RCN 2390F±5"
Indexing Accuracy Class (sec.) 10"
Repeatability (sec.) Unidirectional 2"
Bidirectional 4"
Hydraulic Source (kg/cm²) 35
Clamping Torque (kgf•m) 210
Max. Loading (kg) 600
Outline Dimensions
※ GSA remains the right of modification. All specifications can be modified according to customers' requirement.
