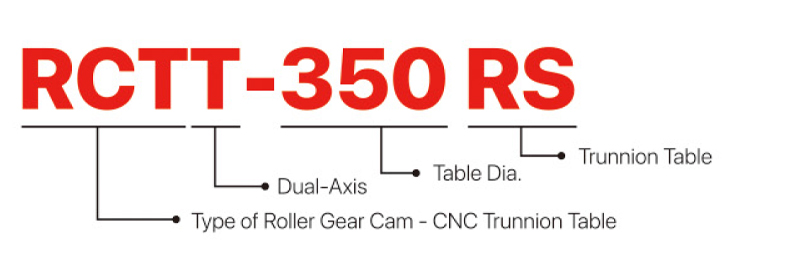

RCTT-350RS
- Features
- Specifications
- Download
- With Zero-Backlash roller drive technology.
- Hith-Speed operation & Lowest indexing cycle time .
- High Rigidity and High Durability.
- Imported from Japan.
| ITEM/MODEL | RCTT-350 | |||
|---|---|---|---|---|
| Center Height in Vertical (mm/inch) | 350/13.77 | |||
| Thru- Hole Dia. (mm/inch) | 410/16.13 | |||
| Thru- Hole Dia. (mm/inch) | 100H7/3.93H7 | |||
| Width of T- slot (mm/inch) | 12H7/0.47H7 | |||
| Width of Guide Block (mm / inch) | 18h7/0.71h7 | |||
| Servo Motor Type | Rotating | Tilting | ||
| FANUC | α8i | α22i | ||
| Gear Ratio | 1:72 | 1:90 | ||
| Min. Indexing Unit Degree (degree) | 0.001° | 0.001° | ||
| Max. R.P.M. (rpm) (motor : 2000 rpm) | 41.6 | 33.3 | ||
| Pneu. Clamp Force (kg•m) | 150 | 200 | ||
| Hydro. Clamp Force (kg•m) | 150 | 200 | ||
| Indexing Accuracy Class (sec.) | 20" | 30" (With Encoder ERN 180:30"） | ||
| Repeat ability (sec.) | 4" | - | ||
| Tilting Degree | ±120° | |||
| INW. (kgs) | 1060 | |||
| Max. Load | Vertical |  |
W=300kg | |
| Horizontal |  |
W=500kg | ||
| Outline Dimensions |  |
|||
| ※ GSA remains the right of modification. All specifications can be modified according to customers' requirement. |
RCTT-350 Specifications-PDF
