NCF-250R-500R

NCF-250R-500R

Inquiry Back
  • Features
  • Specifications
  • Download

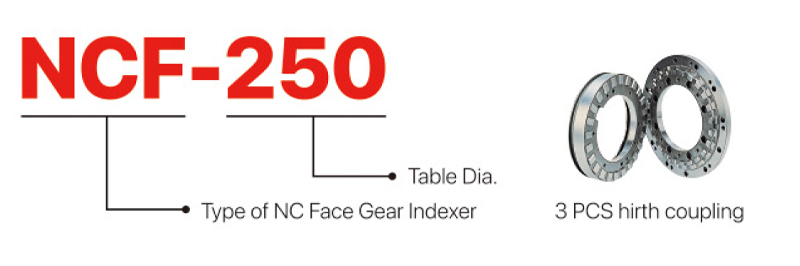

  • Build-in 3pcs hirtn coupling, ensure the indexing accuracy+/- 5 sec.
  • Could be direct connected to the 4th. axis on machining-center. Also could be connected the M-code by useing G.S. single axis AC/DC/Stepping servo controller.
  • Compact design, adapting precision bearing, ensure rigidity and long-term operation.
  • Build-in 3 pieces hirth coupling, table will not lifting-up during rotating.
ITEM/MODEL NCF-250R NCF-320R NCF-400R NCF-500R
Table Dia. {mm/inch) ø250/ø9.84 ø320/ø12.6 ø400/ø15.75 ø500/ø19.69
Center Height in Vertical (mm/inch) 185/7.28 210/8.27 250/9.83 310/12.21
Thru-Hole Dia. {mm/inch) 30H7/1.8H7 80H7/3.15H7 70H7/2.76H7 80H7/3.15H7
Width of T-slot (mm/inch) 12H7/0.47H7 14H7/0.55H7 14H7/0.55H7 14H7/0.55H7
Width of Guide Block {mm/ inch) 18h7/0.71h7 18h7/0.71h7 18h7/0.71h7 18h7/0.71h7
Servo Motor Type FANUC α8i α12i α12i α12i
Gear Ratio 1:90 1:90 1:90 1:180
Min. Indexing Unit Degree {degree) 1°or5° 1°or5° 1°or5° 1°or5°
Max. R.P.M. (rpm) {motor : 2000 rpm) 22.2 22.2 22.2 11.1
Repeatability (sec.) Unidirectional 1" 1" 1" 1"
Bidirectional 2" 2" 2" 2"
N.W. (kgs) 110 240 280 320
Clamp Torque (kg•m) 500 500 600 700
Load Capacity in Vertical (with tailstock) (kgs) 250 300 500 700
Max. Load Vertical W=125kg W=150kg W=250kg W=350kg
Horizontal W=300kg W=350kg W=500kg W=600kg
Outline Dimensions
※ GSA remains the right of modification. All specifications can be modified according to customers' requirement.
