CLT-80~200SB

CLT-80~200SB

Inquiry Back Previous
  • Features
  • Specifications
  • Download

  • All series use 3 pieces hirth coupling & hydraulic clamp funclamp system suitable for heavy cutting long term operation.
  • Driving source per mitsubishi servo motor/drive to rotate tool disc. Index time per station only need 0.1 sec. position accuracy : 0.01 mm.
  • Accepted OEM / ODM Orders.

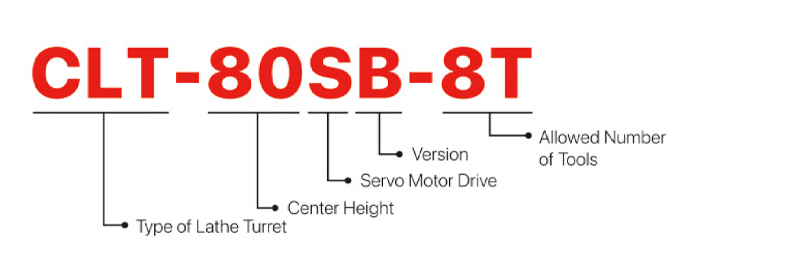

ITEM/MODEL CLT-80SB CLT-100SB CLT-125SB CLT-140SB CLT-160SA CLT-200SB
Allowed Number of Tools N 8 12 8 12 8 12 8 12 8 12 8 12
Center Height mm/inch 80/3.15 100/3.93 125/4.92 140/5.51 160/6.30 200/7.87
Tool disc size mm/inch 290/11.41 340/13.38 330/12.98 420/16.53 420/16.53 420/16.53 480/18.89 480/18.89 480/18.89 480/18.89 483/19.0 600/23.61
Clamping Force kgf 2646 3840 5780 7060 8790 13900
Rotation and Clamping (theoretical value) Sec. 0.52 0.49 0.7 0.64 0.86 0.8 0.9 0.84 0.87 0.81 1.9 1.6
Total Indexing Time for 180° (include clamping) (theoretical value) Sec. 0.79 1.21 1.37 1.4 1.38 4.6
Hydraulic Working Pressure kgf/cm² 35±3 35±3 40±3 40±3 40±3 40±3
Flow Rate L/min 20 20 20 20 30 30
Indexing Accuracy (theoretical value)  Sec. ±2" ±2" ±2" ±2" ±2" ±2"
Accuracy of Repeatability (theoretical value)  Sec. ±1" ±1" ±1" ±1" ±1" ±1"
Servo Motor Type   MITSUBISHI
HG-SR52JK		 MITSUBISHI
HG-SR102JK		 MITSUBISHI
HG-SR102JK		 MITSUBISHI
HG-SR102JK		 MITSUBISHI
HG-SR81JK		 MITSUBISHI
HG-SR81JK
Gear Ratio   24:1 45:1 45:1 45:1 45:1 24:1 (Add Gearbox 120:1)
Motor Stalling Torque N.m 2.4 4.8 4.8 4.8 4.8 8.1
Diameter of Coupling & Type mm/inch Ø125/3pcs Ø150/3pcs Ø180/3pcs Ø185/3pcs Ø230/3pcs Ø270/3pcs
※ GSA remains the right of modification. All specifications can be modified according to customers' requirement.
