GCT-301~1200
- Features
- Specifications
- Download
- Suitable for the high accuracy machining such as Boring-Milling, grinding-machine.

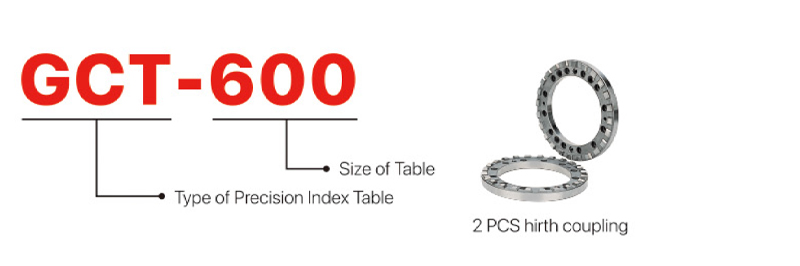

- Build-in 2 pieces hirth coupling for positioning, indexing accuracy +/- 3 sec, ensure a long-term operation.
- Powerful clamping design, allow heavy cutting and boring.
- Clamping/ Unclamping by pneumatic, easy operation.
- The body is FC-35 cast iron, durable and will last longer without deformation.
| ITEM/MODEL | GCT-301 | GCT-450 | GCT-600 | GCT-700 | GCT-800 | GCT-1000 | GCT-1200 |
|---|---|---|---|---|---|---|---|
| Table Size LxW (mm/inch) | 300x300/11.80x11.80 | 450x450/17.72x17.72 | 600x600/23.61x23.61 | 700x700/27.54x27.54 | 800x800/31.48x31.48 | 1000x1000/39.35x39.35 | 1200x1200/47.21x47.21 |
| Over All Height (mm/inch) | 140/5.51 | 170/6.69 | 200/7.87 | 220/8.66 | 280/11.02 | 300/11.80 | 340/13.38 |
| Spindle Hole (mm/inch) | ø25/ø0.98 | ø30/ø1.18 | ø40/ø1.57 | ø40/ø1.57 | ø60/ø2.36 | ø60/ø2.36 | ø80/ø3.15 |
| T-slot Size (mm/inch) | 14H7/0.55H7 | 8H7/0.71H7 | 20H7/0.79H7 | 20H7/0.79H7 | 22H70.87H7 | 22H7/0.87H7 | 22H7/0.87H7 |
| Table Lifting Up & Clamp Down Stroke (mm/inch) | 5/0.20 | 5/0.20 | 5/0.20 | 5/0.20 | 8/0.31 | 8/0.31 | 8/0.31 |
| Clamping/Unclamping | Pneu. 5-8 kg/cm² | Pneu. 5-8 kg/cm² Hydro. 30 kg/cm² |
|||||
| Revolving | Manual | ||||||
| Number of Division (degree) | 15° | 1° or 5° | |||||
| Max. Load Weight in Theory (kgs) | 1200 | 2400 | 3400 | 3400 | 4500 | 6000 | 7000 |
| Max. loading weight (kgs) (evenly distributed) | 500 | 1000 | 2000 | 2000 | 3000 | 5000 | 6000 |
| Clamping Capacity (kgs) | 1000 | 2200 | 3200 | 3200 | 5400 | 5400 | 8100 |
| N.W. (kgs) | 90 | 200 | 400 | 600 | 900 | 1200 | 2000 |
| Outline Dimensions |  |
|
|
|
|
|
|
| ※ GSA remains the right of modification. All specifications can be modified according to customers' requirement. |
