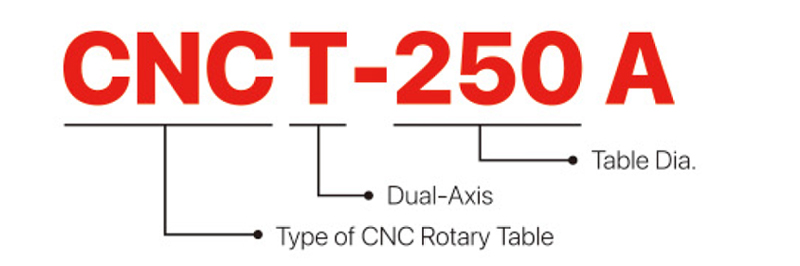

CNCT-100~320
- Features
- Specifications
- Download
- Easy Installation Easy Operation.
- Compact Design Wide Machining Range.
- Even Approx. One Meter Table M/C Could be Installed.
- To match 5 axes M/C for continuing machining, the tilting axis could be connected the M-code by using our single axis AC/DC/Stepping servo controller.
| ITEM / MODEL | CNCT-100 | CNCT-200 | CNCT-250A | CNCT-320 | |||||
|---|---|---|---|---|---|---|---|---|---|
| Table Dia. (mm / inch) | 120 | 200 | 250 | 320 | |||||
| Center Height in Vertical (mm / inch) | 150 | 195 | 225 | 255 | |||||
| Thru-Hole Dia. (mm / inch) | 30H7 | 35H7 | 70H7 | 110H7 | |||||
| Width of T-slot (mm / inch) | 10H7 | 12H7 | 12H7 | 14H7 | |||||
| Width of Guide Block (mm / inch) | 14h7 | 18h7 | 18h7 | 18h7 | |||||
| Servo Motor Type | Rotating | Tilting | Rotating | Tilting | Rotating | Tilting | Rotating | Tilting | |
| FANUC | α2 i | α2 i | α4 i | α8 i | α4 i | α8 i | α8 i | α12 i | |
| Gear Ratio | 1:72 | 1:120 | 1:90 | 1:180 | 1:90 | 1:180 | 1:180 | 1:180 | |
| Min. Indexing Unit Degree (degree) | 0.001° | 0.001° | 0.001° | 0.001° | 0.001° | 0.001° | 0.001° | 0.001° | |
| Max. R.P.M. (rpm) (motor : 2000 / rpm) | 27.8 | 16.7 | 22.2 | 11.1 | 22.2 | 11.1 | 11.1 | 11.1 | |
| Pneu. Clamp Force (kg•m) (P : 5kg / cm²) | 6 | 12 | 25 | 25 | 47 | 47 | 71 | 71 | |
| Hydro. Clamp Force (kg•m) (P : 20kg / cm²) | 12 | 24 | 50 | 50 | 94 | 94 | 142 | 142 | |
| Indexing Accuracy Class (sec.) | 30" | 60" | 20" | 50" | 15" | 30" | 15" | 30" | |
| Repeatability (sec.) | 4" | - | 4" | - | 4" | - | 4" | - | |
| Tilting degree | -20°~120° | ±110° | ±110° | ±110° | |||||
| N.W. (kgs) | 105 | 240 | 280 | 450 | |||||
| Max. Load | Vertical | W=20kg | W=50kg | W=60kg | W=100kg | ||||
 |
|||||||||
| Horizontal | W=35kg | W=100kg | W=100kg | W=200kg | |||||
 |
|||||||||
| Outline Dimension |  |
|
|
|
|||||
| ※ GSA remains the right of modification. All specifications can be modified according to customers' requirement. |
