CNCT-250RS-800

CNCT-250RS-800

Inquiry Back Next
  • Features
  • Specifications
  • Download

  • Dual-Lead worm wheel and worm shaft design with wear-resisting material suitable for 5 axes simultaneous machining.
  • Low center height profile design with wide range machining space.
  • Optional balance pistons provides heavy cutting application and long-term using.

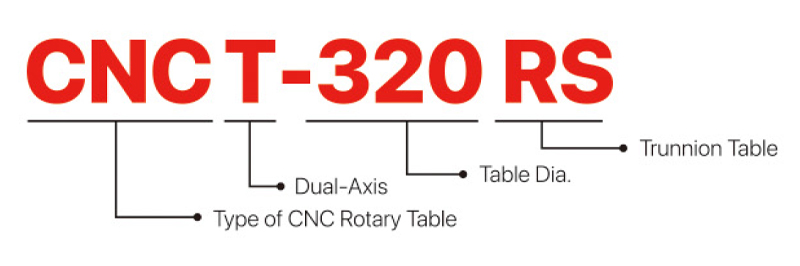

ITEM/ MODEL CNCT-250RS CNCT-320RS CNCT-630RS CNCT-800RS
Table Dia. (mm/inch) 250/9.84 320-500 /12 60-19.67 630/31 5 800/24.79
Center Height in Vertical (mm/ inch) 285/11.21 375/14.75 580/ 22.82 650/25.57
Thru-Hole Dia. (mm/inch) 70H7/2.75H7 145H7/5.71H7 254H7/10.0H7 254H7/10.0H7
Width of T-slot (mm/ inch) 12H7/0.47H7 14H7/0.55H7 18H7/0.71H7 20H7/0.79H7
Width of Guide Block (mm/inch) 18h7/0.71h7 18h7/0.71h7 22h7/0.87h7 22h7/0.87h7
Servo Motor Type Rotating Tilting Rotating Tilting Rotating Tilting Rotating Tilting
FANUC α8i /  α8i α8i / α12i α8i α22i α22i α22i α22i α30i
Gear Ratio 1:90 1:180 1:180 1:180 1:180 1:360 1:180 1:720
Min. Indexing Unit Degree (degree) 0.001° 0.001° 0.001° 0.001° 0.001° 0.001° 0.001° 0.001°
Max. R.P.M. (rpm) (motor: 2000 rpm) 22.2 11.1 11.1 11.1 11.1 5.6 11.1 2.7
Hydro. Clamp Force (kg•m) (P: 20kg/cm²) 110 180 200 280 700 800 1000 1250
Indexing Accuracy Class (sec.) 15" 30" 15" 30" 15" 30" 15" 30"
Repeatability (sec.) Unidirectional 4" 4" 4" 4" 4" 4" 4" 4"
Bidirectional 8" 8" 8" 8" 8" 8" 8" 8"
Tilting Degree ±120° ±120° ±120° ±120°
N.W. (kgs) 1050 1050 2650 4850
Max. Load Vertical

 W=100kg W=100kg W=300kg W=600kg
Horizontal W=200kg W=200kg W=500kg W=1000kg
Outline Dimensions
※ GSA remains the right of modification. All specifications can be modified according to customers' requirement.
