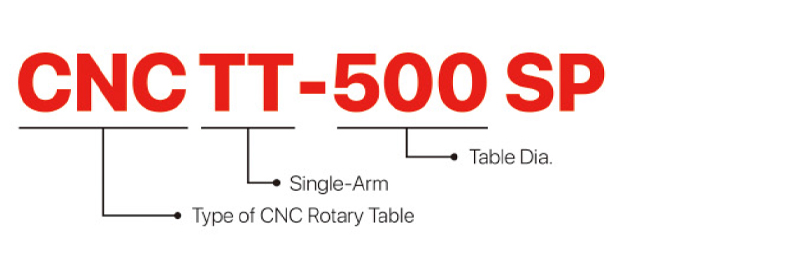

CNCTT-120SP-500SP
- Description
- Features
- Download
- Saving space of machine's table
- Easy Installation Easy Operation.
- Compact Deign Wide Machinine Range.
- Even Approx. One Meter Table M/C Could be Installed.
- To match 5 axes M/C for continuing machining, the tilting axis could be connected the M-code by using our single axis AC/DC/Stepping servo controller.
| ITEM/ MODEL | CNCTT-120SP | CNCTT-400SP | CNCTT-500SP | |||||
|---|---|---|---|---|---|---|---|---|
| Rotating | Tilting | Rotating | Tilting | Rotating | Tilting | |||
| Table Dia. (mm/inch) | 120/4.72 | - | 400/15.74 | - | 650/25.57 | - | ||
| Center Holes (mm/inch) | 30H7/1.18H7 | - | 110H7/4.33H7 | - | 160H7/6.30H7 | - | ||
| Width of T- slot (mm/inch) | 10H7/0.39H7 | - | 14H7/0.55H7 | - | 18H7/0.71H7 | - | ||
| Servo Motor Type | FANUC | α2is | α4is | α12is | α22i | α12i | α40i | |
| Gear Ratio | 1:60 | 1:120 | 1:72 | 1:90 | 1:120 | 1:120 | ||
| Min. Indexing Unit Degree (degree) | 0.001° | 0.001° | 0.001° | 0.001° | 0.001° | 0.001° | ||
| Max. R.P.M. (rpm) (motor : 2000 rpm) | 33.3 | 16.7 | 27.7 | 22.2 | 16.6 | 16.6 | ||
| Pneu. Clamp Force (kg•m) (P: 5kg/cm²) | 36 | 94 | 200 | 300 | 300 | 500 | ||
| Hydro. Clamp Force (kg•m) (P: 20kg/cm²) | 36 | 94 | 200 | 300 | 300 | 500 | ||
| Indexing Accuracy Class (sec.) | 30" | 60" | 15" | 30" (ERN180±15") |
15" | 30" (ERN180±15") |
||
| Repeatability (sec.) | Unidirectional | 4" | 4" | 4" | 4" | 4" | 4" | |
| Bidirectional | 8" | 8" | 8" | 8" | 8" | 8" | ||
| Tilting Degree | - | ±120° | ±110° | ±110° | ||||
| N.W. (kgs) | 150 | 700 | 1170 | |||||
| Max. Load (kg) | 0° | 35 | - | 200 | - | 300 | - | |
| 90° | 20 | - | 150 | - | 200 | - | ||
| Outline Dimensions |  |
|
||||||
| ※ GSA remains the right of modification. All specifications can be modified according to customers' requirement. |
CNCTT400SP-01-00 Outline Dimensions-PDF
