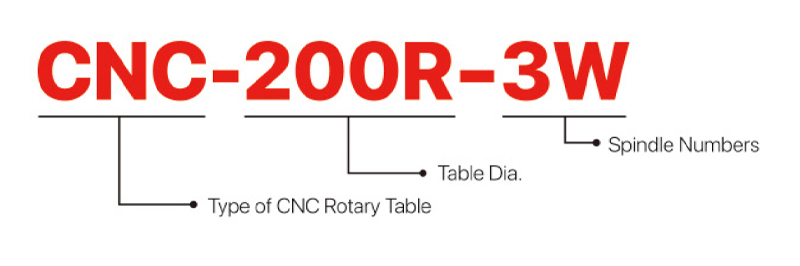

CNC-120R~200R 2W/3W/4W (Multi-Spindle Type)

CNC-120R~200R 2W/3W/4W (Multi-Spindle Type)

Inquiry Back Previous Next
  • Features
  • Specifications
  • Download

  • Double productivity, decreasing machining-time and cost.
  • Multi-Points pneumatic brake system offers superior clamp torque, insures smooth machining without deflection under a heavy load.
  • Increasing machining speed, reduce the time on rotating ATC and workpiece loading-unloading.
ITEM/ MODEL CNC-120R 2W/3W/4W CNC-170R 2W/3W/4W CNC-200R 2W/3W/4W
Table Dia. (mm/inch) 120/4.72 170/6.69 200/7.87
Center Height in Vertical (mm/ inch) 115/453 135/5.31 190/7.48
Thru-Hole Dia. (mm/ inch) 30H7/1.18H7 35H7/1.37H7 35H7/1.38H7
Width of T-slot (mm/ inch) 10H7/0.39H7 12H7/0.47H7 12H7/0.47H7
Width of Guide Block (mm/ inch) 14h7/0.55h7 18h7/0.71h7 18h7/0.71h7
Servo Motor Type FANUC α2 i α4 i α4 i
Gear Ratio 1:60 1:90 1:90
Min. Indexing Unit Degree (degree) 0.001° 0.001° 0.001°
Max. R.P.M. (rpm) (motor: 2000 rpm) 33.3 22.2 22.2
Pneu. Clamp Force (kg•m) (P: 5kg/cm²) 6 25 25
Hydro. Clamp Force (kg•m) (P: 20kg/cm²) 12 50 50
Indexing Accuracy Class (sec.)  30"  20"  20"
Repeatability (sec.) Unidirectional 4" 4" 4"
Bidirectional 8" 8" 8"
Max. Machining Force (kg•m) 12 23 23
NW (kgs) 84 210 270
Max. Load Vertical W=35 kg W=100 kg W=125 kg
Horizontal W=75 kg W=200 kg W=250 kg
Outline Dimensions
※ GSA remains the right of modification All specifications can be modified according to customers' requirement.
