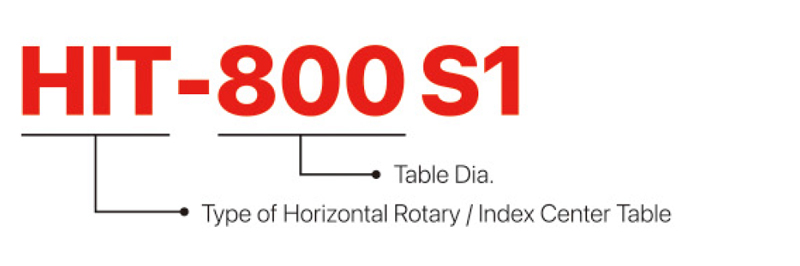

HIT-500S1-1000S1

HIT-500S1-1000S1

Inquiry Back
  • Features
  • Specifications
  • Download

  • Suitable for Horizontal Machining Center.
  • Rotating Speed can be reached 33.3 RPM.
  • Adapting A special anti-wearing/rigid alloy of bronze/nickel worm wheel and hardened steel worm screw ensure long term indexing accuracy.
  • Double powerful brake system with large size of clamping contact surface suitable for heavy cutting.
  • Adapting 2 pcs or 3 pcs Hirth Coupling for posit ioning, Repeatability can be reached+/- 0.5 sec Besides accuracy will not be changed even oper ation times increasing.
  • Indexing Accuracy according to customer's requirement: +/- 2 sec. or +/- 3 sec.
  • All units in Tables are manufactured from high quality materials and workmanship. Every Table has Running/Accuracy testing for at least 48 hours. All electrical parts are imported from Japan/Germany for performance confidence.
ITEM/MODEL HIT-500S1 HIT-630S1 HIT-800S1 HIT-1000S1
Table Size LxW (mm/inch) 500x500/19.67x19.67 630x630/24.79x24.79 800x800/31.48x31.48 1000x1000/39.35x39.35
Over All Height (mm/inch) 305/12.0 315/12.39 340/13.38 380/14.95
Center Holes (mm/inch) 50H7/1.97H7 50H7/1.97H7 65H7/1.97H7 50H7/2.56H7
Center Holes (mm/inch) 50H7/1.97H7 50H7/12.39H7 65H7/13.38H7 50H7/14.95H7
Width of T-slot (mm/inch) 14H7/1.55H7 18H7/0.71H7 18H7/0.71H7 22H7/0.87H7
Clamping/Unclamping Hydro. 35kg/cm² Hydro. 35kg/cm² Hydro. 35kg/cm² Hydro. 35kg/cm²
Servo Motor Type FANUC α12i / α22i α22i α22i α22i / α30i
Gear Ratio 1:90 1:180 1:180 1:180
Max. R.P.M. (rpm) (motor : 2000 rpm) 22.2 11.1 11.1 11.1
Min. Indexing Unit Degree (degree) 1° or 5° 1° or 5° 1° or 5° 1°
Indexing Accuracy Class (sec.) 6" 6" 6" 6"
Max. Loading Weight (kgs) (Evenly Distributed) 1000 2000 3000 5000
Clamping Force (kg) 5495 12000 14000 18000
Weight. (kgs) 325 360 525 1360
Outline Dimensions
※ GSA remains the right of modification. All specifications can be modified according to customers' requirement.
