APCR-500S1-1000

APCR-500S1-1000

Inquiry Back
  • Features
  • Specifications
  • Download

  • Can be funished according to DIN, ISO or Customers' design, all pallets are exchangeable for every Index tables or CNC Tables (Receivers) Pallets changing type can be Swing or forward/backward designed.
  • By high accuracy 4 pcs Cones/Cups.
  • By Hydraulic 4 pcs Pull Studs or Clamping Plate.
  • Can be designed by customers' drawings Saddle.
  • High accuracy and tested modular system for table (Receiver) & sigle/multi Pallets design. Especially suitable for new Horizontal Machining Centers as well as for existing customers' design horizontal table/pallets manufacturing.
  • TAI units table (Receiver) & Single/Multi Pallets are manufactured from high-quality materials and workmanship. Every table undergoes running/accuracy testing for at least 48 hours. All electrical parts are imported from Japan/Germany for performance confidence.
  • 1 degree or 0.001 degree increment are optional Can be choosed by customers' request.+/- 2 sec. or+/- 3 sec.(APR series:encoder is required)

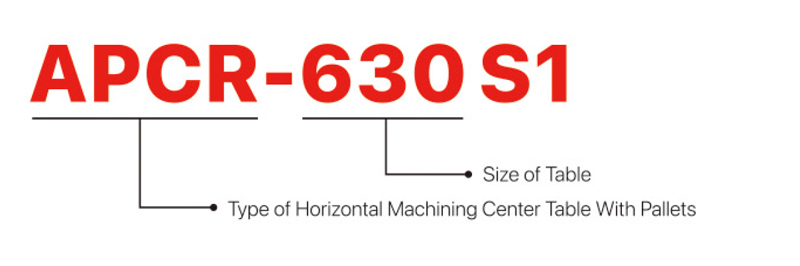

ITEM/MODEL APCR / APCI-500S1 APCR / APCI-630S1 APCR / APCI-800S1 APCR / APCI-1000
Pallet Dimensions (mm/inch) 500/19.67 630/24.79 800/31.48 1000/39.35
T-slot Size (mm/inch) 18H7/0.71H7 18H7/0.71H7 18H7/0.71H7 22H7/0.87H7
Rounded Corners (mm/inch) 673/26.48 811/31.91 1025/40 33 1570/61.77
Total Height (mm/inch) 450/17.71 506/19.91 557/2192 550/21.64
Clamping Station Weight (kgs) 365 600 750 1100
Pallet Weight (kgs) 75 120 170 300
Max. Loading (kgs)(evenly distributed) 600 1200 2000 3000
Clamping Force (kgs) 240/5495 210/12000 280/14000 8000
Machining Torque (kg/m) 240/900 210/1900 280/2900 450
Parallelism (mm) 0.015 0.015 0.025 0.03
Repeatability (mm) 0.01 0.01 0.01 0.01
Outline Dimensions
※ GSA remains the right of modification. All specifications can be modified according to customers' requirement.
